A Guide to Drones and Lidar Technology

Pairing drones with LiDAR has given us an incredibly powerful tool for aerial mapping. It's a combination that allows professionals across many industries to capture highly accurate 3D data far more quickly and safely than traditional methods ever could.

The real magic happens when you use a drone-mounted sensor to send out laser pulses. These pulses measure the earth's surface with pinpoint accuracy, even punching through dense vegetation to map the true ground level—something that was once impossible from the air.

The Synergy of Flight and Light

At its heart, drone LiDAR is about putting a remarkably precise measurement tool exactly where you need it in the sky. LiDAR itself stands for Light Detection and Ranging, and it’s what’s known as an active remote sensing method. The sensor works by firing rapid laser pulses towards a surface and then measuring the exact time it takes for each pulse to bounce back.

Think of it like a bat using echolocation. The bat sends out sound waves and listens for the echoes to build a mental map of its surroundings. A LiDAR sensor does the same thing, but it uses light, sending out hundreds of thousands of laser pulses every second to create a stunningly detailed 3D model of the world below.

Why Drones Make a Difference

Before drones became so accessible, LiDAR sensors were usually mounted on expensive, crewed aeroplanes or set up on cumbersome tripods for ground-based scans. These methods work, but they are often slow, costly, and completely impractical for smaller sites or hard-to-reach areas.

Putting a compact LiDAR sensor on a drone changes the game completely.

• Speed and Efficiency: A drone can cover a large or complex site in a tiny fraction of the time it would take a ground crew. This drastically cuts down project timelines and labour costs.
• Enhanced Safety: Operators can map hazardous or inaccessible places—think unstable mine walls, steep slopes, or disaster zones—from a safe distance, keeping their teams out of harm's way.
• Superior Data Quality: Drones fly lower and slower than traditional aircraft. This closeness allows the LiDAR sensor to capture an incredibly dense point cloud, resulting in more detailed and accurate 3D models.
• Vegetation Penetration: This is where LiDAR truly shines. The laser pulses are able to find tiny gaps in a dense forest canopy or thick scrub to hit the ground below. This is something standard aerial photography (photogrammetry) just can't do.

This unique ability is crucial for creating what we call "bare-earth" models. These are essential for accurate topographical mapping and infrastructure planning, especially in heavily vegetated areas.

The core value of combining drones and LiDAR is simple: it transforms data collection from a slow, ground-based effort into a rapid, safe, and highly precise aerial operation. It provides a level of detail and accessibility that was previously unattainable.

This synergy allows professionals in forestry, mining, construction, and utilities to make better-informed decisions based on data that is both incredibly detailed and precise. The fusion of drone and LiDAR technology isn't just a small step forward; it's a fundamental shift in how we measure and understand the physical world around us.

What’s Inside a Drone LiDAR System?

To get your head around what makes drone LiDAR so effective, you have to look past the drone itself and focus on the high-tech payload it’s carrying. Think of the drone as the workhorse, but the LiDAR payload is the precision mapping engine doing all the heavy lifting. This isn't just one piece of gear; it’s a carefully synchronised trio of instruments working together to capture millions of incredibly accurate measurements.

Each part has a specific job, and they all rely on each other. If one component is off—even by a tiny fraction—the quality of the entire dataset is compromised. It’s this tight integration that turns a simple drone flight into a survey-grade mapping mission.

The Three Key Players

The real magic of a drone LiDAR system is how three distinct technologies work in perfect harmony. They continuously feed data to a central processor, creating a rich stream of information that logs every laser measurement with its exact position and orientation in space and time.

• The LiDAR Sensor: This is the heart of the whole operation. It’s a laser scanner that shoots out hundreds of thousands—sometimes millions—of light pulses every second. It then measures the time it takes for each pulse to hit an object (like the ground, a powerline, or a tree branch) and bounce back, calculating distance with pinpoint accuracy.

• The GNSS Receiver: This is the system's link to the wider world. The Global Navigation Satellite System receiver is constantly talking to satellites to lock in the drone's exact geographic position—its latitude, longitude, and altitude. This is what puts every single measurement on the map, giving it a real-world coordinate.

• The Inertial Measurement Unit (IMU): If the GNSS tells the system where it is, the IMU tells it how it's moving and oriented. This highly sensitive device tracks the drone's roll, pitch, and yaw (its orientation along three axes). This is absolutely critical; a tiny, unrecorded tilt in the drone’s flight can shift a laser measurement by metres on the ground.

These aren't just separate parts bolted together; they're an integrated team.

A drone-mounted LiDAR payload combines several critical pieces of hardware. Each has a specific function, and they all must work together flawlessly to produce the accurate, high-density point clouds that professionals rely on.

Here’s a simple breakdown of what’s in the box and what it does.

Core Components of a Drone LiDAR System

Without the seamless synchronisation of these four components, a LiDAR system would just be collecting a meaningless jumble of laser points. It's their combined, precisely timed data that creates a truly valuable digital model.

From Flight Path to Point Cloud

A typical LiDAR survey mission is a surprisingly automated affair. It all starts with a pre-planned flight path, usually a grid or "lawnmower" pattern, to make sure the entire area is covered. Once it’s launched, the drone flies this route on its own while the system gets to work.

As the drone moves, the LiDAR sensor scans from side to side, painting the ground below with what looks like a curtain of laser pulses. For every single one of those pulses, the system records:

1. The precise distance from the sensor to the target.
2. The drone's exact 3D position from the GNSS receiver.
3. The drone's precise orientation from the IMU.

This constant, synchronised stream of data is what allows a computer to later calculate a precise 3D coordinate for every single point the laser hits. The final product of all this is what we call a point cloud—a massive collection of millions, sometimes billions, of individual measurement points. Each point has its own x, y, and z coordinate, creating a stunningly detailed and measurable digital copy of the real world.

The point cloud is the raw foundation for everything that follows. It’s a rich, three-dimensional dataset that captures the lie of the land and the shape of every object on it with centimetre-level accuracy.

This incredible capability is a big reason why the technology is taking off so quickly. In Australia, the growth of the commercial drone market is being driven by these advanced sensors and the move towards more autonomous operations. As drone batteries last longer and payload capacities increase, they can carry even more powerful LiDAR units, opening the door to new uses across mining, construction, forestry, and more. You can dive deeper into these market trends and their drivers over at the IMARC Group.

Turning Raw Data into Actionable Insights

A freshly captured LiDAR point cloud is a technical marvel, but let's be honest—in its raw state, it's just a gigantic, messy collection of dots. While it’s packed with precise measurements, you can't make critical business decisions with it just yet. The real magic happens during data processing, where we transform those millions of points into clear, tangible intelligence.

Think of it like being handed a huge block of marble. The potential for a masterpiece is there, but you need to carefully chip away the excess to reveal the sculpture inside. Each step in the LiDAR workflow refines the data, adding context and structure until it can finally answer your key operational questions.

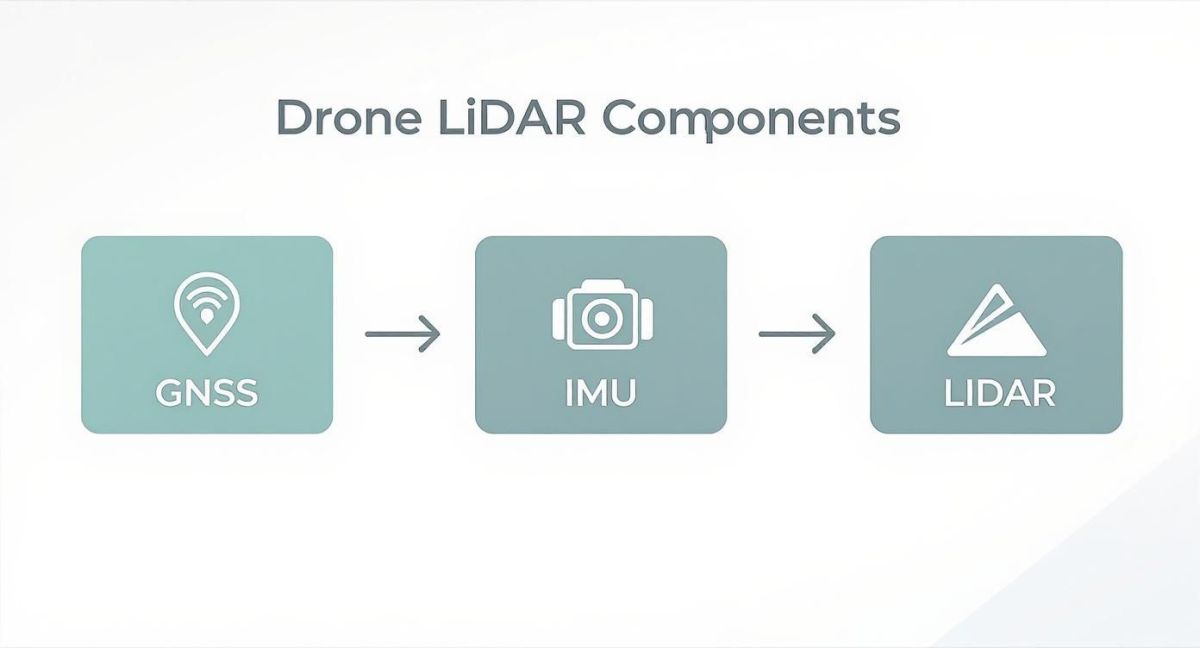

This diagram shows how the core hardware—the GNSS, IMU, and LiDAR scanner—all work in concert to produce that initial point cloud.

You can see how location data from the GNSS, orientation data from the IMU, and the distance measurements from the LiDAR sensor are all synchronised. This fusion is what creates the geo-referenced raw data.

The Data Cleaning and Classification Process

The very first job is to clean up the data. Raw point clouds are rarely perfect; they often contain "noise," which are stray points that don't belong. This could be anything from atmospheric interference to a bird flying through the laser beam or tiny sensor blips. We use specialised software to run algorithms that intelligently hunt down and remove these outliers, which is a crucial first step for improving overall data quality.

Once the noise is gone, we move on to point classification. This is where the software really shines. It automatically analyses the geometric patterns and relationships between points to assign a category to each one. It's smart enough to tell the difference between:

• Ground: Points that make up the bare earth.
• Vegetation: Points hitting trees, bushes, and crops.
• Buildings: Points that form the clear shapes of man-made structures.
• Power Lines: Points that trace the distinct sagging curve of electrical wires.

This automated process is a game-changer. It transforms a chaotic jumble of dots into a neatly organised and searchable digital twin of the real world.

By classifying each point, we move from a simple 3D picture to an intelligent model. This allows us to isolate specific features, like just the ground surface or only the vegetation, to perform detailed analysis.

Extracting Features and Creating Deliverables

With a clean, classified point cloud, we can finally get to the good part: creating the products the client actually needs. This is where the data from drones and lidar starts solving real-world problems and delivering a return on investment.

For example, a civil engineering firm might need a Digital Terrain Model (DTM) for a new road design. To deliver this, we simply filter the dataset to show only the "ground" points. The result is a highly accurate bare-earth model, perfect for calculating earthwork volumes or planning drainage.

Or consider a utility company worried about vegetation growing too close to its power lines. We can use the classified "vegetation" and "power line" points to build a 3D model that precisely measures the distance between every tree branch and conductor. They get a clear report showing exactly where the high-risk spots are, allowing them to send out maintenance crews efficiently and prevent costly outages. It's this final step—turning millions of points into specific, measurable answers—that makes a drone LiDAR survey so valuable.

Real-World Applications of Drone LiDAR

The real test of any technology is what it can actually do on the ground. For drones and LiDAR, the applications aren't just theoretical—they're solving tough problems and delivering a solid return on investment across Australia’s most vital industries. This is where the tech truly proves its worth.

By capturing hyper-accurate 3D data from the air, organisations are gaining insights that were once impossible or just too expensive to get. It’s giving them the power to manage assets, spot risks early, and run their operations with a speed and clarity that old-school methods just can’t touch. Let’s dive into how this is playing out in the real world.

Powerline and Corridor Mapping

For utility companies, managing thousands of kilometres of power lines is a constant battle, especially against vegetation. A single overgrown branch falling on a line is all it takes to cause a major outage. In the past, this meant slow, boots-on-the-ground patrols or costly helicopter flights.

Drone LiDAR has completely changed the game. A drone can fly an entire power corridor, building a stunningly detailed 3D model of everything in its path. Its laser pulses cut right through the tree canopy to map the ground below, while also capturing the precise location of every wire, pole, and insulator.

This allows asset managers to measure the exact distance between any tree branch and a live conductor. The output isn't just raw data; it's a clear, actionable report flagging high-risk vegetation, which means crews can be sent exactly where they're needed most.

It’s a proactive approach that prevents blackouts, boosts network reliability, and, most importantly, keeps ground crews out of harm's way.

Mining and Stockpile Management

On a mine site, accuracy is money. Getting the volume of a stockpile wrong can throw off everything from inventory reports to financial forecasting. The old way involved surveyors clambering over huge, often unstable piles of material—a process that was slow, dangerous, and often inaccurate.

Now, a drone with a LiDAR sensor can scan multiple stockpiles in just a few minutes. The point cloud it generates creates a perfect digital twin of each pile, allowing software to calculate its volume with an accuracy of over 99%.

This shift brings huge benefits:

• Speed: A job that used to take all day can now be knocked over before morning tea.
• Safety: Surveyors stay safely on the ground, well clear of heavy machinery and unstable terrain.
• Accuracy: The data creates a reliable, auditable record for stocktake and financial reconciliation.

This fast, repeatable workflow gives mine operators the timely information they need to manage their resources far more effectively.

Forestry and Environmental Assessment

Whether you’re managing a commercial forest or assessing the damage after a bushfire, getting a clear picture of the environment is tough. Ground-based measurements are incredibly time-consuming and can only ever give you a small snapshot of the bigger picture. This is where LiDAR’s ability to see through vegetation becomes so valuable.

A drone carrying a LiDAR sensor can fly over a dense forest and do something remarkable: it measures both the top of the tree canopy and the true ground level hidden underneath. This unique capability unlocks several key applications:

• Timber Volume Calculation: By comparing the ground elevation to the canopy height, foresters can accurately calculate tree heights and estimate timber volumes across the entire forest without ever stepping foot inside.
• Bushfire Damage Assessment: After a fire, LiDAR can map the extent of canopy loss and identify areas at risk of soil erosion, providing vital data for recovery and rehabilitation efforts.
• Biodiversity Monitoring: The detailed 3D data of the forest structure helps ecologists understand habitat complexity and track environmental changes over time.

By providing a complete 3D view of the forest, drones and LiDAR give environmental managers the tools to work more sustainably and make better-informed decisions.

Construction and Infrastructure Projects

On any large construction site, keeping the project on track and on budget is the number one priority. Drone LiDAR is becoming a powerful ally for progress monitoring and quality control.

By flying the site at regular intervals, project managers can overlay the fresh point cloud data directly onto the original 3D design models (like BIM or CAD files). This comparison instantly highlights any differences between what’s been built and what was planned. It's used to verify earthwork volumes, check that structural elements are in the right place, and create a precise as-built record when the job is done. This kind of frequent, data-rich oversight helps catch expensive mistakes early and keeps everyone on the same page.

To really understand the difference this technology makes, it helps to compare it directly with traditional methods.

Drone LiDAR vs Traditional Surveying Methods

The table below breaks down how drone LiDAR stacks up against conventional ground surveying for some of these key applications.

As you can see, the advantages in speed, safety, and data quality are substantial. While traditional surveying certainly still has its place, for large-scale projects requiring comprehensive 3D data, drone-based LiDAR is often the smarter choice.

How to Choose the Right Drone and LiDAR Solution

Picking the right drone and LiDAR setup is a huge decision. With so many options out there, it's easy to get lost, but the best choice always comes back to what you actually need to do on the job. A poor match between your drone and sensor won't just be inefficient—it'll deliver bad data, and that's a mistake you can't afford to make.

Think of it like pairing a truck with the right tool for a big job. You wouldn't try to haul a massive excavator with a small ute, and you wouldn't use a jackhammer to tap in a tiny nail. It's the same principle here. The drone has to be the right "truck" for your LiDAR "tool," and that tool needs to be perfect for the task ahead.

Evaluating the Drone Platform

The drone, or UAS, is the workhorse of your entire operation. Its specs dictate where you can fly, how long you can stay in the air, and what gear you can actually lift. When you're looking at a drone, you need to cut through the marketing noise and focus on what really matters for a successful mission.

Here's what I always look at first:

• Payload Capacity: This is your starting point. The drone absolutely must be able to lift your LiDAR unit, cameras, and anything else you bolt on, with a bit of power to spare. Never push the maximum payload; it's just asking for trouble.
• Flight Time (Endurance): More air time means more ground covered in one go. Simple as that. If you're mapping long stretches of pipeline or big rural properties, endurance is probably the most critical number on the spec sheet. It's the difference between a one-day job and a three-day job.
• Durability and Weather Resistance: Let's be honest, Australian conditions aren't always friendly. A good IP (Ingress Protection) rating is essential because it tells you how well the drone handles dust and rain. You need a tough, reliable machine that won't pack it in when the weather turns.

A drone that nails these three things gives you the freedom and reliability to take on tough survey jobs with confidence.

Your drone platform isn't just a vehicle; it's the stable, reliable base that makes high-quality data acquisition possible. Under-specifying the drone is one of the most common and costly mistakes a new operator can make.

Demystifying LiDAR Sensor Specifications

Once you've shortlisted a few capable drones, it’s time to get into the details of the LiDAR sensor itself. The technical jargon on a spec sheet can look pretty intimidating, but you only need to focus on a handful of key numbers to understand how a sensor will perform in the real world.

These are the specs that truly matter:

• Range: This tells you how far away the sensor can accurately "see" a point. A longer range is a massive advantage—it means you can fly higher and faster, covering huge areas efficiently while still getting clean data from the ground.
• Accuracy: Usually measured in centimetres, this is the number that defines the precision of your final point cloud. For any kind of professional survey work, you should be looking for a system that can deliver 2-5 cm accuracy.
• Pulse Rate: This is how many laser points the sensor shoots out per second (PPS). A higher pulse rate creates a much denser point cloud, which is what allows you to pick up fine details like individual power lines or small ground features.
• Multiple Returns: This is a sensor's superpower. It’s the ability to get multiple measurements back from a single laser pulse. This is absolutely essential for seeing through trees, as it lets you map the top of the canopy, branches in the middle, and—most importantly—the true ground underneath, all in one pass.

In the end, you're not just buying a drone and a sensor; you're investing in an integrated system. The best solutions are the ones where the two are designed to work together right out of the box. That kind of seamless pairing makes everything from planning the flight to delivering the final data a whole lot easier.

Flying Safe and Staying Compliant in Australia

When you’re working with powerful tools like drones and LiDAR, it's not just about the impressive technology. It’s about operating safely and, just as importantly, within the law. Australia’s skies are professionally managed, and any commercial drone flight falls under a strict set of rules from the Civil Aviation Safety Authority (CASA).

This isn't just red tape designed to slow you down. This framework is what ensures every commercial flight is handled responsibly, keeping people, property, and other aircraft safe. For any business thinking about bringing drone LiDAR in-house, getting your head around these rules is the absolute first step to building a successful program.

The Must-Have CASA Certifications

To fly a drone for commercial purposes in Australia, especially one carrying a valuable LiDAR payload, you'll need two core certifications from CASA. These are non-negotiable for any professional operation.

1. Remote Pilot Licence (RePL): This is your personal ticket to fly. The RePL proves that you, the pilot, have completed the right training and have the know-how to operate a drone safely and competently under Australian aviation law.

2. Operator's Certificate (ReOC): This one’s for the business. A ReOC shows that your company has its house in order with proper safety procedures, risk management plans, and detailed operational manuals that meet CASA's standards. Think of it as the company's licence to fly.

These certifications are the backbone of Australia's commercial drone industry, which is a serious and growing part of our economy. Projections show it could create an extra 5,500 full-time jobs each year through to 2040, a huge boost for both city and regional areas. A detailed Deloitte report breaks down this growth and its economic impact if you'd like to dive deeper.

Safety on the Ground, Before You Ever Take Off

Beyond the paperwork, safety on the day is everything. Every single mission, no matter how many times you’ve done it before, needs to be approached with a safety-first attitude.

A successful LiDAR survey isn't just about collecting great data. It's about bringing the drone and payload home safely, without a single incident or shortcut. That all comes down to meticulous planning and disciplined pre-flight checks.

This process should always include:

• Solid Mission Planning: Before the drone even comes out of its case, you need to be doing risk assessments, checking for airspace restrictions, studying the weather, and having a clear plan for any emergencies.
• Pre-Flight Inspections: Get hands-on. Check every part of the drone and LiDAR payload for any sign of damage or wear. This means propellers, batteries, GPS lock, and all sensor connections.
• Smart Payload Management: A LiDAR unit adds a fair bit of weight. The pilot must confirm the drone is well under its maximum take-off weight (MTOW) and that the payload is perfectly balanced for a stable, predictable flight.

By making these safety protocols and regulatory checks a non-negotiable part of your workflow, you can confidently use drones and LiDAR to their full potential, minimising risks while unlocking their massive benefits.

A Few Common Questions About Drone LiDAR

Getting into drone LiDAR often brings up a few key questions. If you're weighing up whether this technology is the right fit for your operations, you're not alone. We've compiled some straightforward answers to the questions we hear most often from professionals just like you.

Let's cut through the noise and get to the practical details you need to know about what a high-quality drone LiDAR system can actually do in the field.

Just How Accurate Is It?

Drone LiDAR data is incredibly precise, routinely delivering survey-grade results with an accuracy of 2 to 5 centimetres. Getting that kind of precision isn't magic, though; it’s the result of the whole system working together flawlessly.

The quality of the LiDAR sensor, the precision of the onboard GNSS/IMU for positioning, the drone's flight height, and how the data is processed afterwards all have a huge impact. For projects where every millimetre counts, adding a few ground control points (GCPs) can lock the data to real-world coordinates with even greater confidence.

What’s the Big Deal with LiDAR vs. Photogrammetry?

If there’s one standout advantage, it’s this: LiDAR can see through trees and vegetation. It's an active system, meaning it sends out its own laser pulses. These pulses can sneak through tiny gaps in a dense canopy of leaves and branches to map the actual ground surface below.

This makes LiDAR the go-to tool for creating accurate digital terrain models (DTMs) in forests or overgrown areas. Photogrammetry, on the other hand, relies on passive light and photos, so it only captures what the camera can see—usually the tops of the trees. For true "bare-earth" modelling, it simply can't compete.

Is It Hard to Fly a LiDAR Drone?

While modern systems are highly automated, flying a LiDAR drone for commercial surveys is a professional skill that requires proper training and certification. The drone often flies the mission by itself based on a pre-loaded flight plan. The real skill comes in planning that mission meticulously and, later, in processing the complex point cloud data.

In Australia, the Civil Aviation Safety Authority (CASA) requires commercial pilots to hold a Remote Pilot Licence (RePL). The business itself also typically needs a Remotely Piloted Aircraft Operator's Certificate (ReOC). It's a serious discipline grounded in safety and compliance.

What Sort of Cost Are We Talking About?

The cost of a drone LiDAR survey can really vary. It all depends on the size and complexity of the area, the level of accuracy needed, and how remote the site is.

The upfront investment in the gear is significant, there's no doubt about that. However, the cost per project often works out to be far more economical than sending out a traditional ground crew. A drone can map an area hundreds of times faster with fewer people, which means you get a powerful return on investment, especially on larger or more complicated jobs.
