A Guide to LiDAR and Drones for Modern Surveying

When you pair a LiDAR sensor with a drone, you get a seriously powerful aerial mapping tool. It’s all about capturing incredibly accurate 3D data, and doing it far quicker than you ever could with old-school, ground-based methods. Think of it as creating a precise digital copy of the world, all from the sky, using tiny pulses of light.

The New Frontier in 3D Data Capture

Picture this: you're in a pitch-black room and need to map it out. What if you could throw thousands of super bouncy balls in every direction and record exactly when and where they hit something and returned to you? That’s the basic idea behind LiDAR (Light Detection and Ranging), except it uses laser light instead of rubber balls.

Now, put that LiDAR sensor on a drone, and you've given that mapping power a set of wings. As the drone flies over a site, the sensor fires out hundreds of thousands of laser pulses every second. By timing how long each pulse takes to bounce back, the system calculates distance with pinpoint accuracy. The end result is a massive collection of points that forms a highly detailed 3D map, known as a "point cloud."

This marriage of LiDAR and drones has shifted data capture from a ground-up slog to a top-down, efficient operation, bringing some major advantages over traditional surveying.

Key Benefits of This Technology

• Speed and Efficiency: A single drone flight can cover huge areas—think mines, forests, or kilometres of power lines—in just a fraction of the time a ground crew would need.
• Enhanced Safety: It keeps people out of harm's way. You can inspect hazardous or hard-to-reach places like unstable slopes, busy transport corridors, or storm-damaged infrastructure without putting boots on the ground.
• Superior Data Quality: This is where LiDAR really shines. It can see through vegetation to map the actual ground beneath the canopy. That’s a game-changer for forestry, environmental monitoring, and creating truly accurate topographic surveys where photogrammetry often falls short.

This technology is no longer just a niche tool for specialists; it's become a fundamental part of modern geospatial data collection. It gives industries the power to make smarter, faster decisions based on precise digital models of their physical assets and environments.

The demand for this kind of high-resolution data is fuelling some serious growth. In Australia, the drones market—which includes these LiDAR-equipped models—was valued at around USD 0.28 billion in 2024 and is expected to climb to USD 2.76 billion by 2034. While drone LiDAR is pushing the boundaries of physical data capture, it's also interesting to see how generative AI is changing the future of 3D design, opening up new avenues for data creation and visualisation. You can dive deeper into these market trends in this detailed Australia drones market analysis.

How Drone LiDAR Technology Actually Works

To really get your head around what makes drone LiDAR so powerful, you need to understand what's happening inside that sensor while it's in the air. The core principle is surprisingly straightforward: measuring distance with light.

Think of it like this: you're in a completely dark, unfamiliar room and need to map it out. You could start throwing thousands of tiny tennis balls in every direction and time how long it takes for each one to hit something and bounce back to you. Based on those return times, you could piece together a pretty good mental map of the room's shape and size.

Drone LiDAR does almost the same thing, but with incredible speed and precision. Instead of tennis balls, it fires rapid pulses of near-infrared laser light—often hundreds of thousands of times every second. These light pulses shoot down, hit objects on the ground like trees, buildings, or the earth itself, and reflect back to the sensor.

The system precisely measures the time it takes for each pulse to make that round trip. Since we know the speed of light, this "time-of-flight" is easily converted into a highly accurate distance measurement. This happens millions of times during a single flight, with each measurement creating a single point in 3D space. The collection of all these points is what we call a point cloud—a stunningly detailed, three-dimensional digital copy of the surveyed area.

The Three Musketeers of LiDAR Accuracy

Now, the laser scanner gets all the attention, but it can’t work alone. To turn those distance measurements into a geographically accurate map, the system has to know its exact position and orientation in the world the very instant each laser pulse is sent out. This is where a trio of critical components works in perfect harmony.

A drone LiDAR payload is much more than just a laser. It's a highly sophisticated positioning and orientation system. The laser scanner gives you the distance, but it’s the GNSS and IMU that provide the vital context of where that measurement was taken from.

Let's break down the essential hardware that makes this all possible.

Key Components of a Drone LiDAR System

These three components are the backbone of any high-performance drone LiDAR system.

By seamlessly fusing the data from all three—the distance from the laser, the location from the GNSS, and the orientation from the IMU—the system calculates the real-world coordinates for every single point. It’s this tight integration that transforms millions of simple distance measurements into a survey-grade 3D model you can actually trust.

From Mission Planning to a Final Point Cloud

Turning a project brief into a high-precision 3D point cloud isn't just a matter of flying a drone. It's a methodical process that starts with careful planning on the ground, moves to automated data capture in the air, and finishes with some serious number-crunching back in the office. Getting a handle on this workflow shows you exactly how drone LiDAR delivers such powerful results.

The whole operation breaks down neatly into three phases. Each one builds on the last, making sure the final data is not only accurate but also perfectly suited to the job at hand.

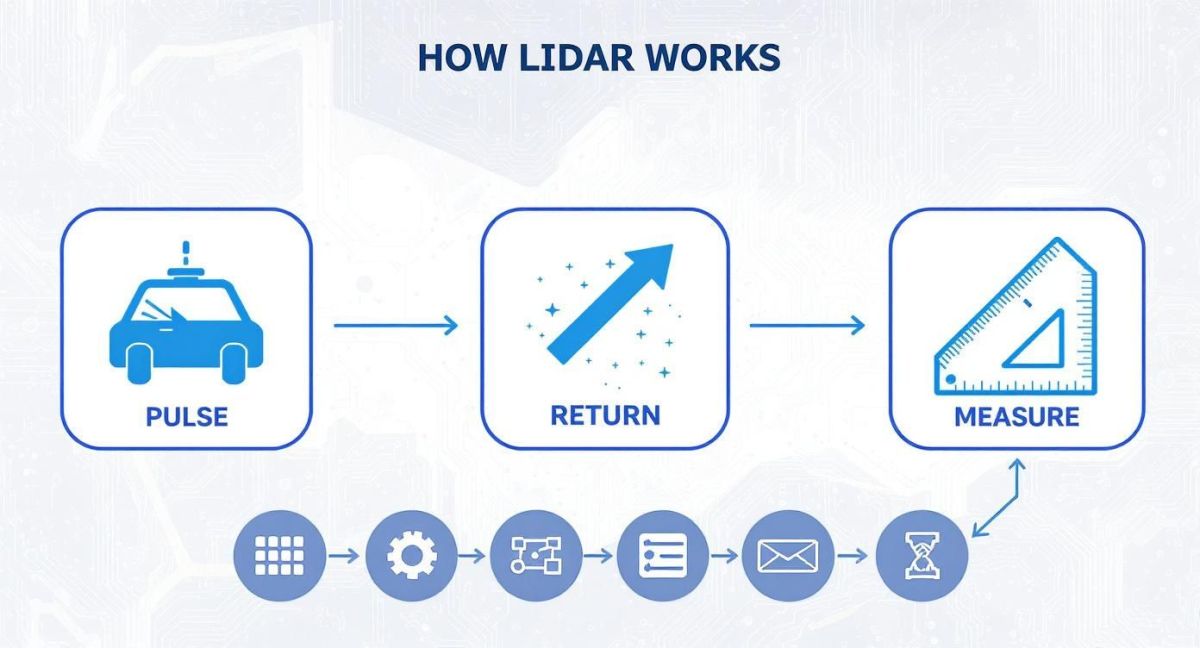

This process is all about capturing millions of individual data points to build a picture of the world.

At its core, the principle is simple but incredibly powerful: send out a laser pulse, catch its reflection, and measure the time it took for the round trip. That tiny measurement is what gives us distance with amazing precision.

Phase 1: The Mission Planning Stage

A successful LiDAR survey begins long before the drone’s propellers start spinning. In the mission planning phase, we translate what the client needs into a concrete, actionable flight plan. This is all done in specialised software, where we can draw the exact survey area on a map and lock in the crucial flight parameters.

Every decision here has a direct impact on the quality of the final point cloud. Flying lower, for instance, gives you a much denser, more detailed point cloud, but it also means you’ll need more flight time (and batteries) to cover the same patch of ground. It's a constant balancing act.

Here’s what we dial in during planning:

• Survey Boundary: We digitally fence off the exact area of interest. No more, no less.
• Flight Altitude: This is the height above ground level (AGL) the drone will fly. It's the classic trade-off between getting super-dense data and covering more ground quickly.
• Flight Line Overlap: To avoid any gaps in the data, we set how much each pass overlaps the last one. This is typically somewhere between 20% to 50%.
• Flight Speed: We adjust the drone's speed to find the sweet spot between mission efficiency and giving the LiDAR sensor enough time to capture a solid number of points per square metre.

Phase 2: Automated Data Capture

Once the mission plan is loaded onto the drone, the actual data capture is almost entirely hands-off. The pilot kicks off the flight, and the drone gets to work, autonomously following the pre-programmed path with centimetre-level accuracy.

While it’s up there, the LiDAR payload is a hive of activity. The whole integrated system—the laser scanner, GNSS receiver, and IMU—works in perfect harmony. The scanner is firing out and receiving hundreds of thousands of laser pulses every second, while the GNSS and IMU are meticulously recording the drone's exact position and orientation for every single one of those pulses.

All this raw data, both the laser returns and the drone's trajectory log, is saved to an onboard drive, ready for the real magic back at the computer.

Phase 3: Data Processing and Deliverables

With the drone safely on the ground, the final—and most computationally demanding—phase begins. We transfer the raw data from the drone to a powerful computer running dedicated LiDAR processing software. This is where millions of individual measurements are transformed into a clean, accurate, and genuinely useful 3D model.

The post-processing workflow follows a few critical steps:

1. Trajectory Processing: First up, we take the drone’s GNSS data and combine it with data from a ground-based reference station set up nearby. This technique, known as Post-Processed Kinematic (PPK), refines the drone's flight path down to survey-grade accuracy.

2. Point Cloud Generation: The software then uses this ultra-accurate trajectory to georeference every single laser return. It calculates the precise X, Y, and Z coordinate for each point, creating the first version of our georeferenced point cloud, usually in a standard .LAS or .LAZ file.

3. Cleaning and Classification: The raw point cloud is never perfect; it’ll have "noise" from things like bird strikes or even atmospheric effects. Automated algorithms are great at filtering this out. Next, the software intelligently classifies points into useful categories—think ground, vegetation, buildings, or power lines—which makes the data infinitely easier to work with.

This final, classified point cloud is the core deliverable. It's a rich, intelligent 3D dataset that serves as a digital twin of the surveyed environment, ready for detailed analysis, modelling, and decision-making.

From this carefully planned and executed process, professionals can then extract invaluable assets like digital elevation models (DEMs), 3D building models, and vegetation encroachment reports.

Where Drone LiDAR Really Shines: Real-World Applications

The true magic of drone LiDAR happens when you see the problems it solves out in the field. This isn't just about making cool 3D models; it's about delivering data that makes work safer, faster, and more accurate. From keeping the power on to managing vast forests, the applications are as varied as they are vital.

And this field is growing. Fast. In Australia, the LiDAR market pulled in around USD 29.8 million in 2021 and is on track to hit USD 160.2 million by 2030. While ground-based scanners have been the norm, it's the airborne LiDAR segment—powered by drones—that's really taking off, all thanks to the insatiable demand for precise topographic data. You can dig into the numbers yourself in this Australian LiDAR market outlook.

This growth isn't just hype; it's fuelled by genuine success stories where drones give companies a clear operational edge. Let's look at a few key industries where this tech is making a real difference.

Utilities and Infrastructure Management

For any power company, trees are public enemy number one. A single fallen branch can knock out power for thousands and, in dry conditions, spark a devastating bushfire. The old-school approach meant sending out ground crews or chartering expensive helicopters—both slow, risky, and often incomplete ways of assessing the risk.

Drone LiDAR turns this entire process on its head.

• Spotting Trouble from the Air: A drone can fly along kilometres of power lines, capturing the precise location of every single branch in relation to the wires. It sees exactly what needs to be seen.
• Mapping the Danger Zone: The point cloud data allows teams to model "clearance zones" around the lines, instantly highlighting every potential encroachment point that needs trimming.
• Getting Ahead of the Problem: This isn't just about reacting; it's about predicting. Armed with this data, utilities can schedule maintenance proactively, preventing outages before they happen and making the grid far more reliable.

Mining and Earthworks

In mining, accuracy and speed are the name of the game. You need to know exactly how much material you're moving and ensure the site is safe, day in and day out. Drone LiDAR provides an incredible solution for managing stockpiles and monitoring the site.

Think about measuring a stockpile. It used to be a long, dangerous job for a surveyor on foot. Now, a drone can capture the whole thing in a single, quick flight, producing a 3D model that calculates the volume with over 99% accuracy.

This gives mine operators near-instant inventory counts, helping them streamline logistics and keep their books in order. On top of that, LiDAR is used to keep a close eye on pit walls and tailings dams, spotting any subtle ground movement that could signal instability and dramatically improving safety for everyone on site.

Construction and Transport

Big infrastructure projects—new highways, rail lines, sprawling developments—all start with a detailed topographic survey. Drone LiDAR is perfectly suited for mapping these long, linear corridors and complex sites, giving engineers the rich data they need to get things right from day one.

Imagine you're planning a new road through the bush. A drone can fly the entire proposed route, capturing the exact contours of the land, even right through the trees. This lets engineers design the road for optimal grading, which means less earthmoving and more accurate costings.

Once construction starts, the job isn't over. Regular drone scans can track progress, comparing the "as-built" reality on the ground with the original blueprints. This constant oversight helps catch deviations early, keeping the project on track and on budget.

Forestry and Environmental Management

To manage a forest well, you need to understand its structure from the top of the canopy right down to the forest floor. LiDAR's ability to punch through foliage makes it an absolute game-changer for modern forestry.

By measuring laser returns from both the treetops and the ground beneath, foresters get a wealth of information. They use this data to:

• Calculate Timber Volume: Accurately measure canopy height and density to estimate timber yields without setting foot in the forest.
• Understand the Terrain: Map the forest floor to plan access roads and harvesting operations safely and efficiently.
• Monitor Forest Health: Analyse the forest structure to assess wildlife habitats and track the impact of environmental changes over time.

This depth of insight makes everything from commercial logging to conservation more effective. The sheer efficiency of drone LiDAR means we can now monitor huge areas of our environment in ways that simply weren't possible before.

2. Choosing the Right LiDAR Drone and Sensor

Picking the right drone and LiDAR sensor is easily the most important decision you'll make. It directly impacts the quality of your data, how efficiently you can work, and ultimately, your bottom line. It’s less about finding a single “best” system and more about matching the right tool to your specific jobs.

The whole process is a balancing act between what your projects demand, what the drone can physically do, and what the sensor is capable of capturing.

Let's start with the drone itself. Your main choices are multi-rotor (think quadcopters or Quadcopters) and fixed-wing platforms. Each has its own sweet spot, depending on whether you're mapping a tight, complex site or stretching out over vast, linear projects.

A multi-rotor drone is incredibly nimble. It can pop up and down vertically in confined areas, hover perfectly still, and fly low and slow. This makes it ideal for detailed inspections of buildings or mapping smaller, tricky sites where precision is everything. The trade-off? Shorter flight times, which can be a real drag on larger surveys.

Matching the Drone to the Mission

Choosing your aircraft goes beyond just flight time. You need to think about what a typical project looks like for you. A crew inspecting power transmission towers has completely different needs than a team mapping a 50-kilometre transport corridor.

For any job that needs stability and the ability to get up close and personal, a multi-rotor is the obvious choice. But when you’ve got a lot of ground to cover, a fixed-wing or a hybrid VTOL (Vertical Take-Off and Landing) drone really shines. Their endurance means you can capture massive areas in a single flight, which is a huge boost to your field efficiency.

The platform you choose is the foundation of your aerial LiDAR system. A multi-rotor gives you surgical precision for detailed work, while a fixed-wing offers the endurance for broad-acre mapping. Your choice sets the stage for the scale and type of projects you can effectively tackle.

Figuring out the best drone for your needs can feel like a big decision. To make it a bit easier, here’s a quick comparison of how multi-rotor and fixed-wing platforms stack up for common survey and mapping tasks.

Choosing Your Drone Platform

Ultimately, the table shows there's no single "winner." The best platform is the one that aligns with the majority of your project work, helping you operate more efficiently and deliver better results for your clients.

Decoding LiDAR Sensor Specifications

Once you have a good idea of the drone you need, it’s time to look at the sensor itself. Staring at a LiDAR spec sheet can feel pretty overwhelming at first, but you only need to focus on a few key numbers to understand how it will perform in the real world. Getting a handle on these terms helps you cut through the marketing fluff.

Here are the critical specs to check out:

• Pulse Rate: Measured in points per second (PPS), this is simply how many laser pulses the unit fires off. A higher pulse rate means a denser point cloud, which is what you need to capture fine details on the ground.
• Range: This tells you the maximum distance the sensor can be from an object and still get a reliable laser return. A longer range is a huge advantage, as it lets the drone fly higher and cover more ground with each pass, making big jobs much more efficient.
• Accuracy: Usually cited in centimetres, this tells you how precise the measurements are. You absolutely need to make sure the sensor’s accuracy meets the tolerances your clients require, whether it's for an engineering design or a simple topo map.
• Multiple Returns: This is where LiDAR really shows its magic. It’s the ability to capture multiple "bounces" from a single laser pulse. This is what allows the sensor to punch through vegetation and map the true ground underneath—a non-negotiable feature for anyone working in forestry, environmental monitoring, or corridor mapping.

By breaking down what you actually need and understanding what these core specs mean for your work, you can confidently choose a drone and LiDAR system that’s a perfect fit for your operations. You’ll be set up to get the right data, the first time.

Getting a Return and Staying on the Right Side of the Rules

Bringing drone LiDAR into your workflow is about more than just the tech. You need a solid business case and a firm grip on the operational rules. The real trick to making this powerful tool work for you is navigating the regulations smoothly and making sure every flight pays for itself. The good news? The payback often happens faster than you'd think.

It really all boils down to two things: efficiency and safety. Think about it. A traditional ground survey might take a crew weeks to complete, often in pretty dodgy environments. A drone LiDAR system can capture that same data, and often much more, in just a few hours. That’s a massive saving on field time and labour costs right there. This speed means projects get off the ground faster and your decisions are based on what's happening right now, not what was there a month ago.

What's the Real Payback?

The financial wins go way beyond just saving time on site. A huge, and sometimes overlooked, benefit is the massive boost to safety. You're keeping your surveyors out of harm's way—away from active mine sites, unstable slopes, or live traffic corridors. This doesn't just protect your people; it can also lead to lower insurance premiums and fewer headaches with liability.

The true value of drone LiDAR clicks into place when you add up the savings from less field time, the improved safety, and the sheer quality of the data. This powerful mix leads to better project results, fewer expensive re-dos, and a real competitive edge when you're bidding on new work.

And let's not forget the data itself. The incredibly detailed point clouds you get from a LiDAR drone allow for pinpoint accurate volume calculations, smarter design plans, and a proactive approach to maintenance. All of this helps you catch potential problems early and avoid costly mistakes down the line.

Key Rules and Best Practices

If you're running a commercial drone program in Australia, you'll be working with the Civil Aviation Safety Authority (CASA). The rulebook can look a bit intimidating at first, but it’s all there to keep the skies safe for everyone.

For the most part, you'll need to have these bases covered:

• Operator Certification: Your business will most likely need a Remotely Piloted Aircraft Operator's Certificate (ReOC).
• Pilot Licensing: The people flying the drones must hold a Remote Pilot Licence (RePL).
• Flight Approvals: Flying in specific zones, like near airports or in controlled airspace, requires getting the right authorisations beforehand.

When you're crunching the numbers on operational costs and compliance, it’s also smart to get your head around the world of aviation insurance. Understanding liability and equipment coverage is essential, and this guide to flight school insurance offers some great insights that are relevant to commercial drone operations.

Finally, solid data management and security aren't optional. The data you capture is incredibly detailed and can be highly sensitive. You need a plan. Setting up secure storage, clear rules on who can access the data, and a rock-solid backup strategy is fundamental to protecting your work and your clients' information. This ensures your program isn't just profitable, but responsible too.

Common Questions About LiDAR and Drones

Jumping into new technology always stirs up a few questions. When you're dealing with something as capable as LiDAR and drones, getting straight answers is key to figuring out what it can actually do for your projects.

How Accurate Is Drone LiDAR Data?

You can expect some seriously impressive accuracy from a drone LiDAR system, usually somewhere in the 2-5 centimetre range. But that number isn't set in stone. The final result really comes down to the quality of the sensor you're using, how high you're flying, and the skill that goes into processing the data afterwards.

It’s also important to get your head around the two kinds of accuracy we talk about in surveying:

• Relative Accuracy: This is all about how well the points in your dataset line up with each other. It’s about internal consistency.
• Absolute Accuracy: This measures how closely your data points match their real-world coordinates on the globe. For any kind of survey-grade work, high absolute accuracy is non-negotiable.

What Is the Difference Between LiDAR and Photogrammetry?

Here's a simple way to think about it: LiDAR is like taking a laser tape measure and physically pinging millions of individual points to map out a space. It builds a genuine 3D model from direct measurements, which is why it's unbeatable for capturing fine details or seeing through trees to map the ground.

Photogrammetry, on the other hand, is more like using your eyes. It stitches together hundreds of 2D photos, and then software infers the 3D structure. It's a clever and powerful technique, but it can't see through a dense canopy and really needs good, even lighting to work well.

In short: LiDAR measures distance directly, while photogrammetry calculates it from images. That single difference gives LiDAR a massive edge in vegetated areas or on cloudy days.

How Much Does a LiDAR Drone Survey Cost?

This is a classic "how long is a piece of string?" question. The cost of a LiDAR survey can swing wildly depending on the size and complexity of your site, the level of accuracy you need, and what kind of final reports or models you're after.

While the upfront cost for LiDAR gear is certainly higher than a photogrammetry drone, the return on investment often shows up much faster than you'd think. You see it in the massive time savings on large or tricky sites, the improved safety from keeping people out of harm's way, and the sheer quality of the data, which lets you make critical decisions with much greater confidence.
